PRODUCTS

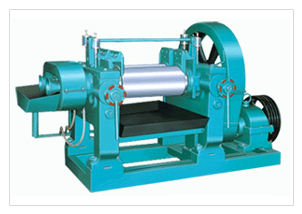

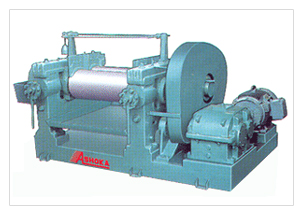

MIXING MILL

Mixing Mill with chilled cast iron rolls with motorised or hand operated nip adjustment.

Sizes
are 6"x16", 8"x18", 10"x24", 12"x30", 14"x36", 16"x42", 18"x48" etc.
OUTLINE SPECIFICATIONS OF MIXING MILLS
Size Of Rolls   DIA. x Length Capacity KGS.  Batch (APP.) R.P.M of  Rolls (App.) Friction Ratio Electric  Motor H.P
6" x 16"

3/6

29 1 : 1 . 15

7.5

8" x 18" 7/10 23 1 : 1 . 15 10
10" x 24" 15/20 21 1 : 1 . 18 20
12" x 30" 20/30 21 1 : 1 . 18 30
14" x 36" 30/45 19 1 : 1 . 18 40
16" x 42" 50/60 17 1 : 1 . 18 60
18" x 48" 75/90 15 1 : 1 . 18 75
Friction ratio and R.P.M. can be changed as per customer's requirement.

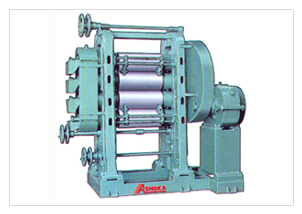

CALENDER
The machines with two to five rolls can be supplied as per customer's requirement.
Sizes are 6"x18", 8"x24", 10"x30", 12"x36", 14"x42", 16"x48" etc.

OUTLINE SPECIFICATIONS OF CALENDERS

Size Of Roll
DIA. x Length
Line Speed. Per Minute (APP.) in MTRS. Max. Width of Product Electric
 Motor H.P
6" x 18" 7 14"

7.5

8" x 24" 7 20" 10
10" x 30" 7 26" 15
12" x 36" 9 30" 25
14" x 42" 9 36" 40
16" x 48" 9 42" 50
Line speed of the Calenders can be changed as per customer's requirement.

EXTRUDER
The machines can be supplied both in cast iron and steel fabricated bodies and with carbon steel worm & sleeve set or with Nitrided worm & sleeve set as per customer's requirements. Sizes are 2",3",4",6",8" etc.

OUTLINE SPECIFICATIONS OF EXTRUDERS
Worm Dia L/D Ratio Worm
Speed R.P.M.
Capacity KG./H.R.APP. Electric
Motor KW.
1" 1 : 5 52 5 2
2" 1 : 5 52 20 5
3" 1 : 5 47 30 7.5
4" 1 : 5 45 140 15
4.5" 1 : 5 45 170 20
6" 1 : 5 35 250 25
8" 1 : 5 25 300 40
